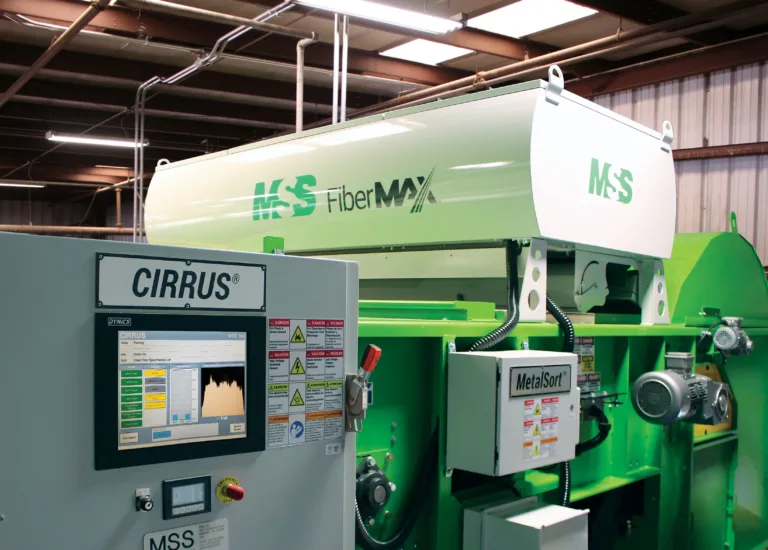

Closeup of a green Cirrus FiberMax unit in a warehouse.

FiberMax™

Optical Fiber Sorting Technology

At MSS, our CIRRUS FiberMax™ technology revolutionizes sorting automation, providing unparalleled operational flexibility and efficiency in recycling.

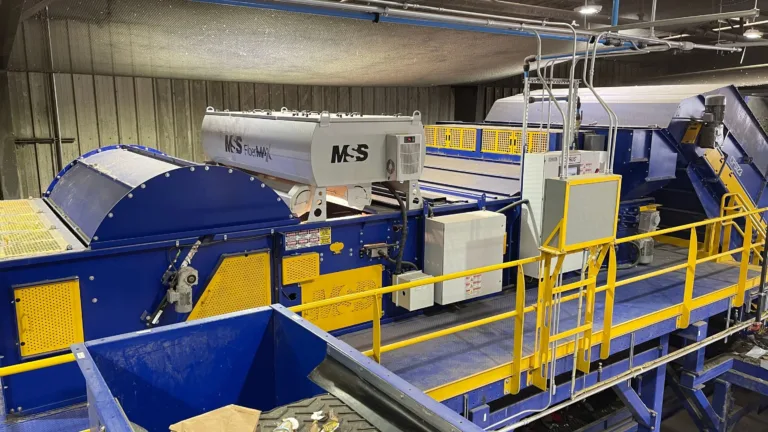

  • A dark blue FiberMax optical sorter unit in a MRF.

    Optimize Cost Marketability

    The ultimate optical sorting solution for MRFs significantly enhances fiber purity, improving marketability and providing quick returns on investment. In a 2017 independent study, an impressive 96.6% sorting efficiency was achieved for flexible plastics packaging (FPP) from mixed paper in a commercial single-stream MRF, using a spiked sample of over 23,000 pieces of FPP to ensure statistically relevant data.

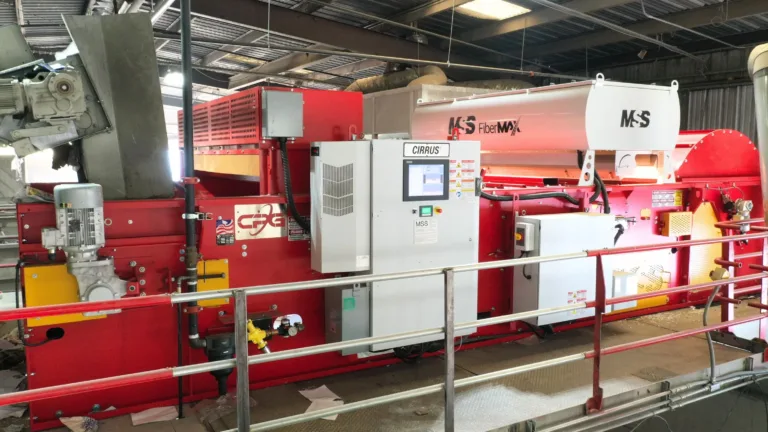

  • A red optical sorter FiberMax unit on a platform.

    Unmatched Detection Accuracy

    Leveraging the CIRRUS sensor platform, this system offers superior detection accuracy and flexibility. With MaxSelect™ and ClearLight™ technologies, it delivers high-definition imaging without the need for hardware modifications. Operating at belt speeds of 1,000 feet/minute and utilizing MSS’ Precision Flow Hood, one unit can replace 20 manual QC sorters, achieving 600-800 picks per minute.



Download Brochure

Features

  • Near-infrared (NIR) and color sensors with single or dual-eject setup
  • Color touchscreen with remote access and language selection
  • Easy recipe changes at the touch of a button; software license never expires
  • Continuous automated internal calibration and 1,000 FPM (5m/sec) belt speeds
  • Upgrade options for split configuration and metal detection, with statistics/QC reports available

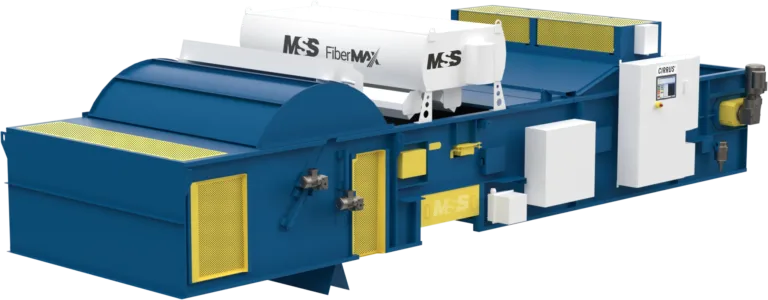

Detailed render update of a blue FiberMax Optical Sorter.

Solutions

  • MRFs and Paper Recyclers
  • MRFs and PRFs
  • MSW and C&D
  • Beverage Cartons
  • Sort prohibitives and OCC from SRP and Mixed Paper
  • Positively sort SRP and Mixed Paper
